GUARD LEVEL® DIGITAL FLOAT GAUGE (DFG)

Product Details

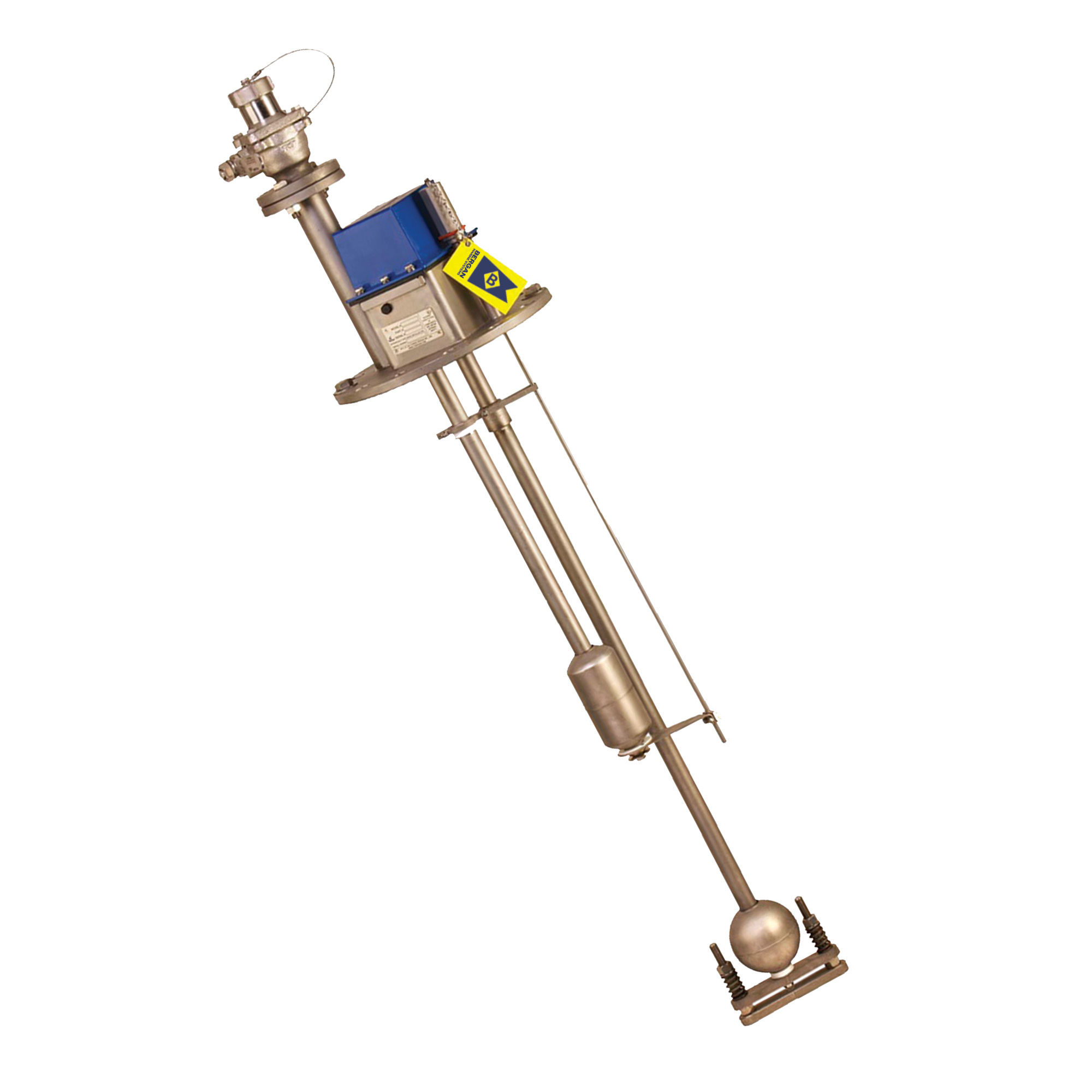

The GUARD LEVEL® Digital Float Gauge (DFG) sensor is a rugged and accurate tank gauge sensor ideal for cargo as well as ballast and service tanks. The float magnetically actuates a series of digitally interfaced dry reed switches, physically spaced, assuring absolute accuracy and completely eliminating the need for recalibration during its life.

This adaptable sensor can be supplied in any length of 0.5m increments up to a maximum of 20m. Add an optional 150 or 300LB flange, it is an ideal setup for LPG/Ethane and other liquefied compressed gas applications.

For cargo tank gauging, The GUARD LEVEL® DFG 250 ALL-IN-ONE version of the DFG is the perfect solution. It combines the level gauging, H and HH level alarm, tank pressure, tank temperature (one to three points) and UTI port for MMC or Hermetic style vapor ball valve in a single tank penetration. With a single 6 or 8-core cable to the MCU, this sensor significantly reduces installation cost and minimizes trip hazards on deck.

The local LCD display can be optionally remote mounted. For simplicity, all electrical/electronic parts can be serviced from tank top without exposing tank vapor to the crew –keeping them safe.
