GUARD TEMP® STS-100/200

Product Details

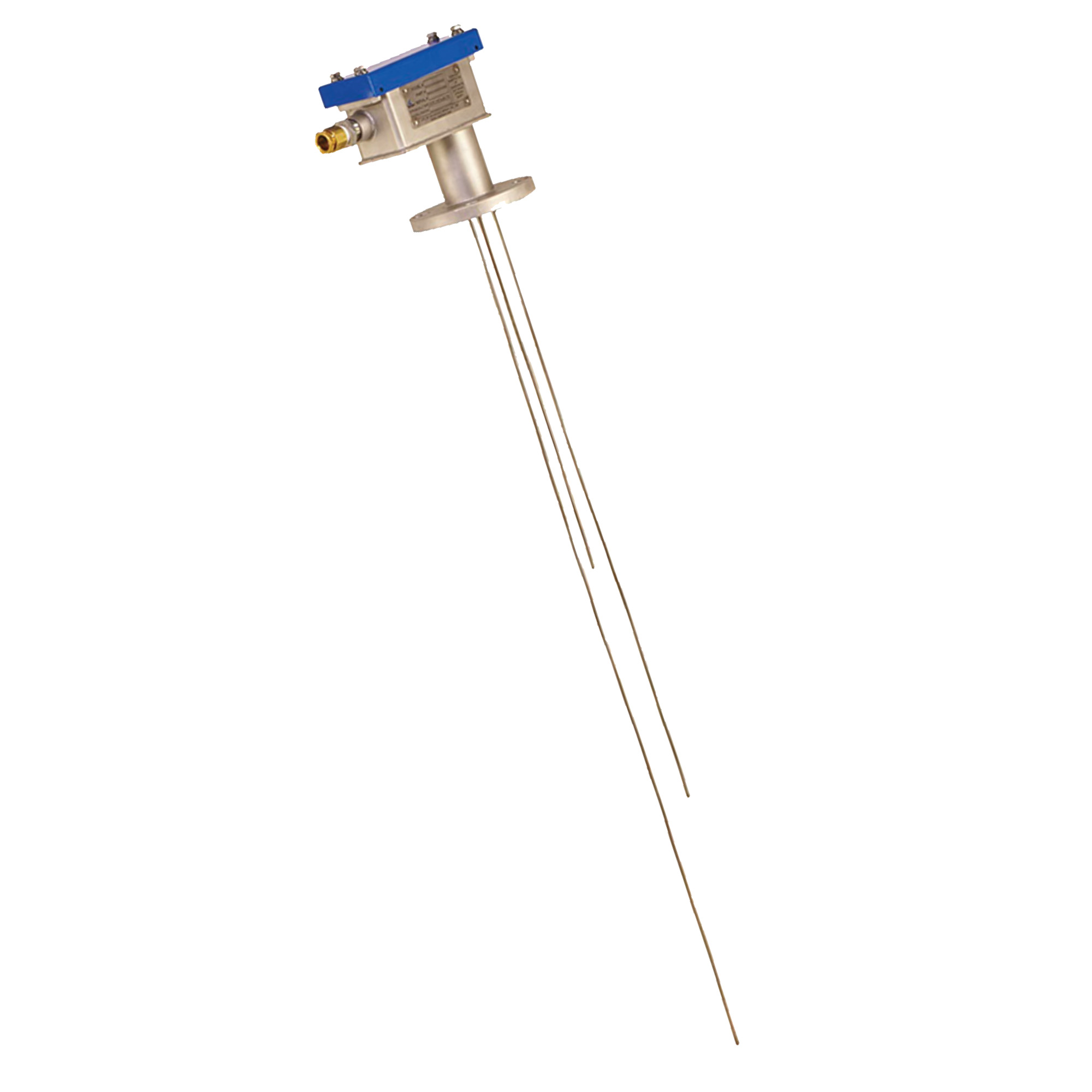

(Click to enlarge image) The GUARD TEMPTM STS series of tank temperature sensors are designed for tank ships and tank barges and can be fitted at one, two or three points per tank – with pump thermo well flange or high temp asphalt options.

Choose from a normal cargo temperature using a neoprene cable (the STS-100 version) or the high- temp version with a Teflon jacketed cable (STS-200.)

The PT-1000 wire wound platinum RTD type temperature sensors are wired into the associated temperature deck junction box containing one to three RTD to 4-20mA Intrinsically Safe certified converters.
