Naval Architectural Analysis

Product Details

We perform Naval Architectural Analysis in accordance with the requirements of USACE Safety and Health Manual, EM 385-1-1, Section 16.L.

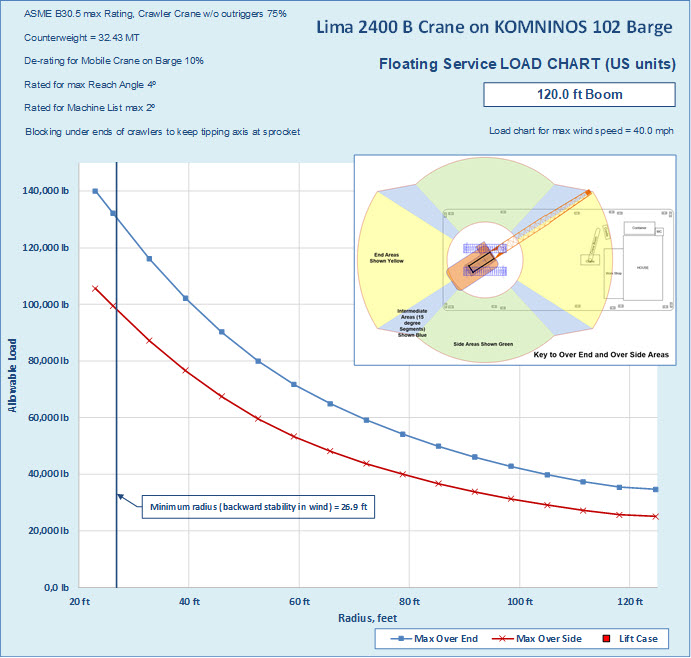

We produce bespoke Floating Service Load Charts in compliance with:
Floating Service Load Chart if Manufacturer’s Floating Service Load Chart is not available, a floating service load chart may be developed and provided by a qualified RPE, competent in the field of floating cranes. The Load Chart shall:
(1) Be in accordance with all criteria from the selected standard in Section 16.L.02;
(2) Provide a table of rated load vs. boom angle and radius;
(3) Provide the maximum allowable machine list and machine trim associated with the tabular loads and radii provided;
(4) Be stamped by a RPE, qualified and competent in the field of floating cranes. The RPE, competent in the field of floating cranes shall, stamp and certify (sign) that the Naval Architectural Analysis (NAA) meets the requirements of Sections 16.L.03
